Creating gRPC Server Based on SQL

Overview

Create gRPC server based on sql provides a complete gRPC backend service solution from development to deployment. The core feature of this solution is: developers only need to connect to the database to automatically generate standardized CRUD API interfaces, without writing any Go language code, achieving "low-code development" for gRPC services.

Tips

Another gRPC service development solution, Create gRPC server based on protobuf (see Based on Protobuf), allows using built-in or custom ORM components, while this solution only uses the built-in ORM component. This is the biggest difference between the two solutions.

Applicable Scenarios: Suitable for gRPC service projects primarily based on standardized CRUD APIs.

Prerequisites

Note

Sponge supports database types: mysql, mongodb, postgresql, sqlite

The following operations use mysql as an example to introduce the gRPC service development steps. The steps for the other database types are the same.

Environment Requirements:

• sponge is installed
• mysql database service
• database table structure

Note

Generating code requires a mysql service and database tables. You can start a mysql service using the docker script and then import the example SQL.

Create gRPC Server

Execute the command sponge run in the terminal to enter the code generation UI:

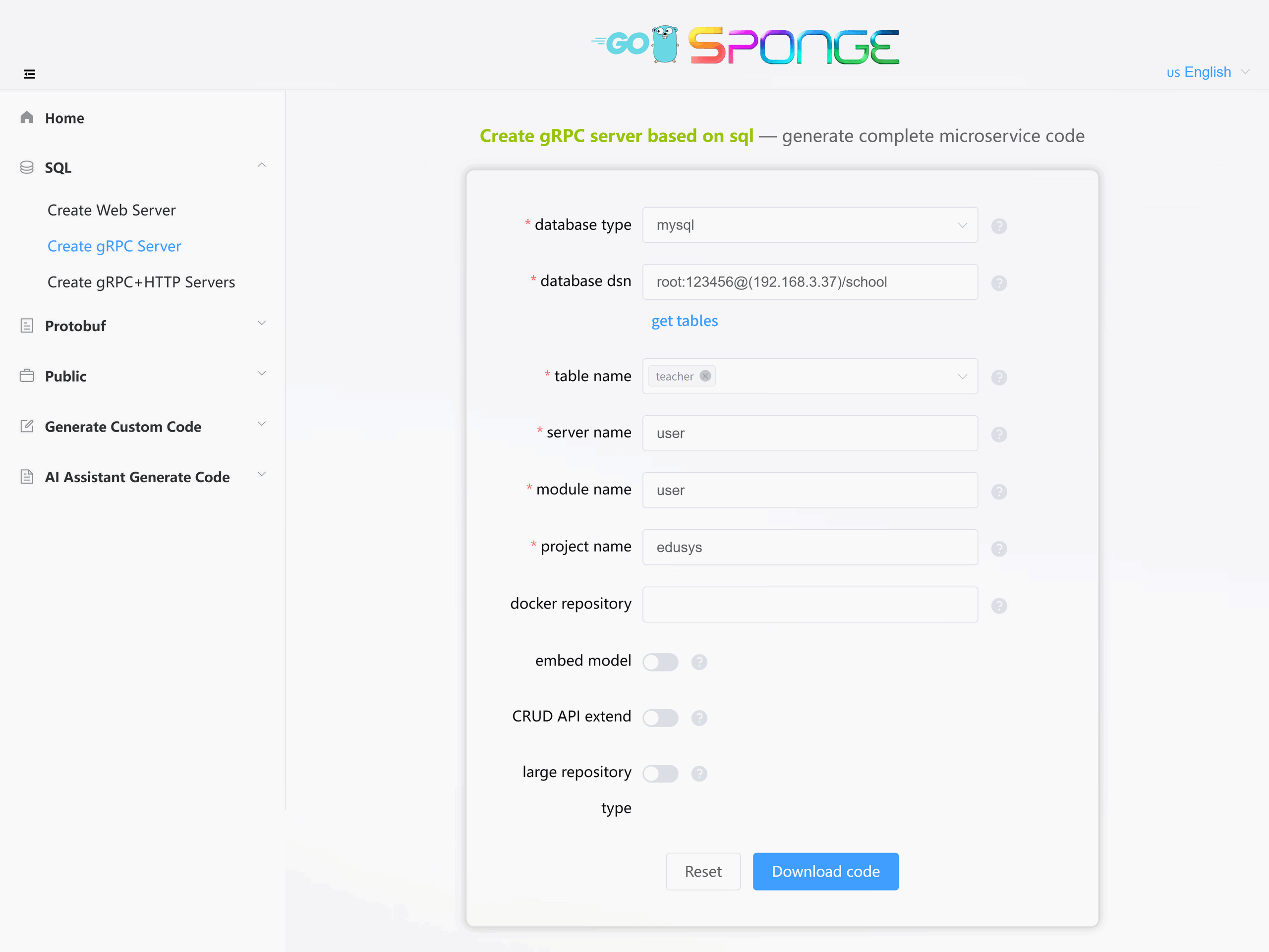

1. Click on the left menu bar [SQL] → [Create gRPC Server];
2. Select database mysql, fill in Database DSN, then click the button Get Table Names, and select table names (multiple selections allowed);
3. Fill in other parameters. Hover the mouse over the question mark ? to view parameter explanations;

Tips

If you enable the Large Repository Type option when filling in parameters, this setting must be maintained for all subsequent related code generations.

After filling in the parameters, click the button Download Code to generate the complete gRPC service project code, as shown in the figure below:

micro-rpc

Equivalent Command

sponge micro rpc --module-name=user --server-name=user --project-name=edusys --db-driver=mysql --db-dsn="root:123456@(192.168.3.37:3306)/school" --db-table=teacher

Tips

• The directory name for the generated gRPC service code defaults to the format service-name-type-time. You can modify this directory name as needed.

• The system will automatically save the records of successfully generated code. When you generate code again, if the Database DSN remains unchanged, the available table names list will be automatically loaded after the page refreshes or is reopened, without needing to manually click the Get Table Names button.

Directory Structure

.
├─ api
│   ├─ types
│   └─ user
│       └─ v1
├─ cmd
│   └─ user
│       ├─ initial
│       └─ main.go
├─ configs
├─ deployments
│   ├─ binary
│   ├─ docker-compose
│   └─ kubernetes
├─ docs
├─ internal
│   ├─ cache
│   ├─ config
│   ├─ dao
│   ├─ ecode
│   ├─ model
│   ├─ server
│   └─ service
├─ scripts
└─ third_party

Code Structure Diagram

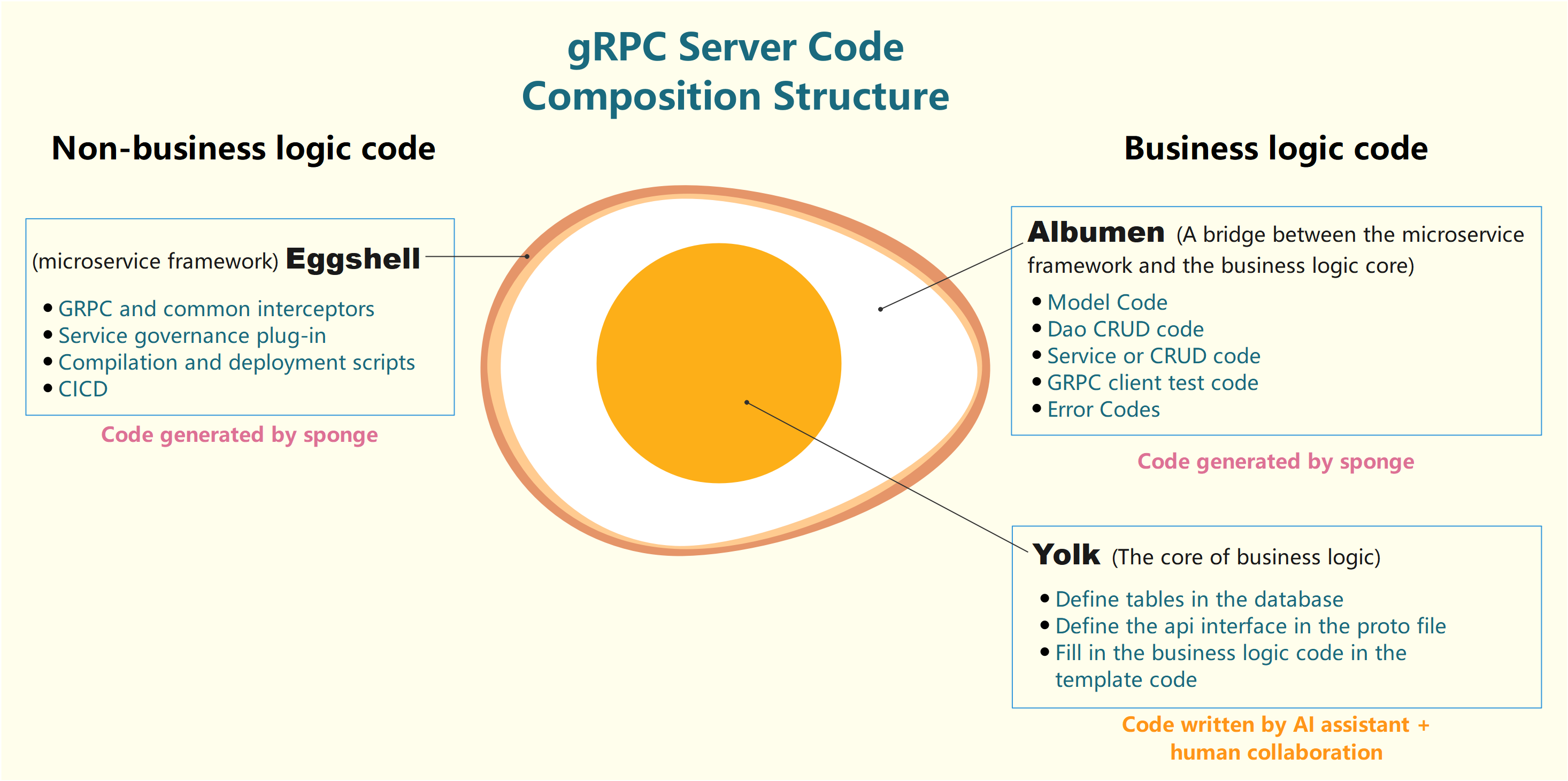

The created gRPC service code adopts the classic "Egg Model" architecture:

micro-rpc-pb-anatomy

Code Call Chain Explanation

The gRPC service code generated by sponge adopts a layered architecture. The complete call chain is as follows:

cmd/user/main.go → internal/server/grpc.go → internal/service → internal/dao → internal/model

The service layer is primarily responsible for API processing. If more complex business logic needs to be handled, it is recommended to add an additional business logic layer (e.g., internal/biz) between the service and dao layers. For details, please refer to the Layered Code Architecture section.

Test gRPC Service API

Unzip the code file, open a terminal, navigate to the gRPC service code directory, and execute the commands:

# Generate and merge api related code
make proto

# Compile and run the service
make run

make proto Command Explanation

1. Usage Recommendation
   Only execute this command when there are changes in the API description in the proto file. Otherwise, skip this command and directly run make run.

2. This command performs the following automated operations in the background

   • Generate *.pb.go files
   • Generate error code definitions
   • Generate gRPC client test code
   • Generate API template code
   • Automatically merge API template code

3. Safety Mechanism

• Code merging preserves existing business logic
• Code is automatically backed up to the following locations before each merge:
  • Linux/Mac: /tmp/sponge_merge_backup_code
  • Windows: C:\Users\[username]\AppData\Local\Temp\sponge_merge_backup_code

Testing Method One: IDE (Recommended)

1. Open Project

   • Load the project using an IDE like Goland or VSCode.

2. Execute Test

   • Go to the internal/service directory and open the file with the suffix _client_test.go.
   • The file contains test and benchmark functions for each API defined in the proto file.
   • Modify request parameters (similar to Swagger UI testing)

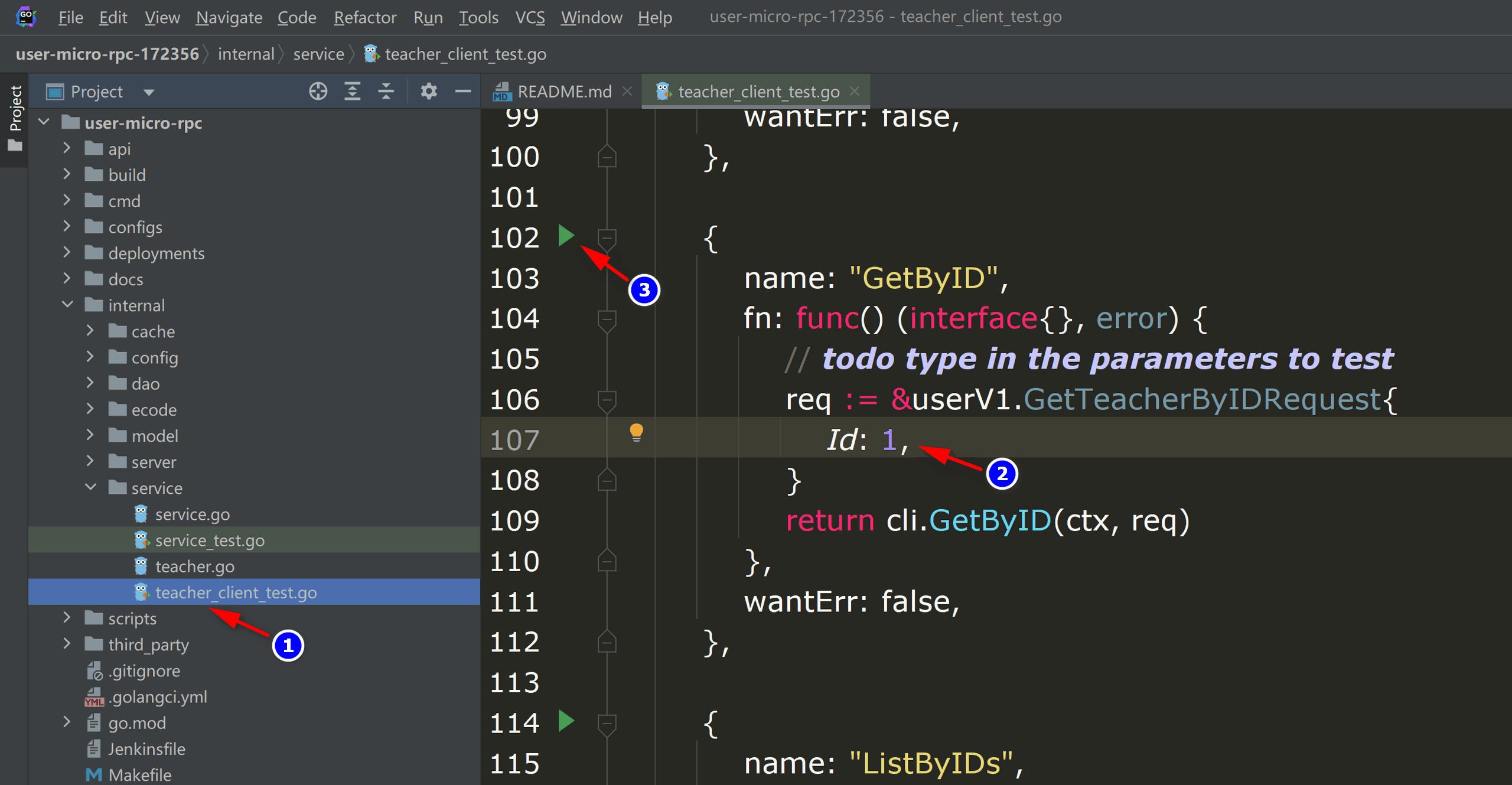

   • Run tests through the IDE, as shown in the figure below:



   micro-rpc-test

Testing Method Two: Command Line

1. Navigate to Directory

   cd internal/service

2. Modify Parameters

   • Open the xxx_client_test.go file
   • Fill in the request parameters for the gRPC API

3. Execute Test

   go test -run "TestFunctionName/gRPCMethodName"

   Example:

   go test -run "Test_service_teacher_methods/GetByID"

Add CRUD API

If you need to generate CRUD API code for new mysql tables, the CRUD API generated by sponge can be seamlessly added to the gRPC service code without writing any Go code.

Generate Service CRUD Code

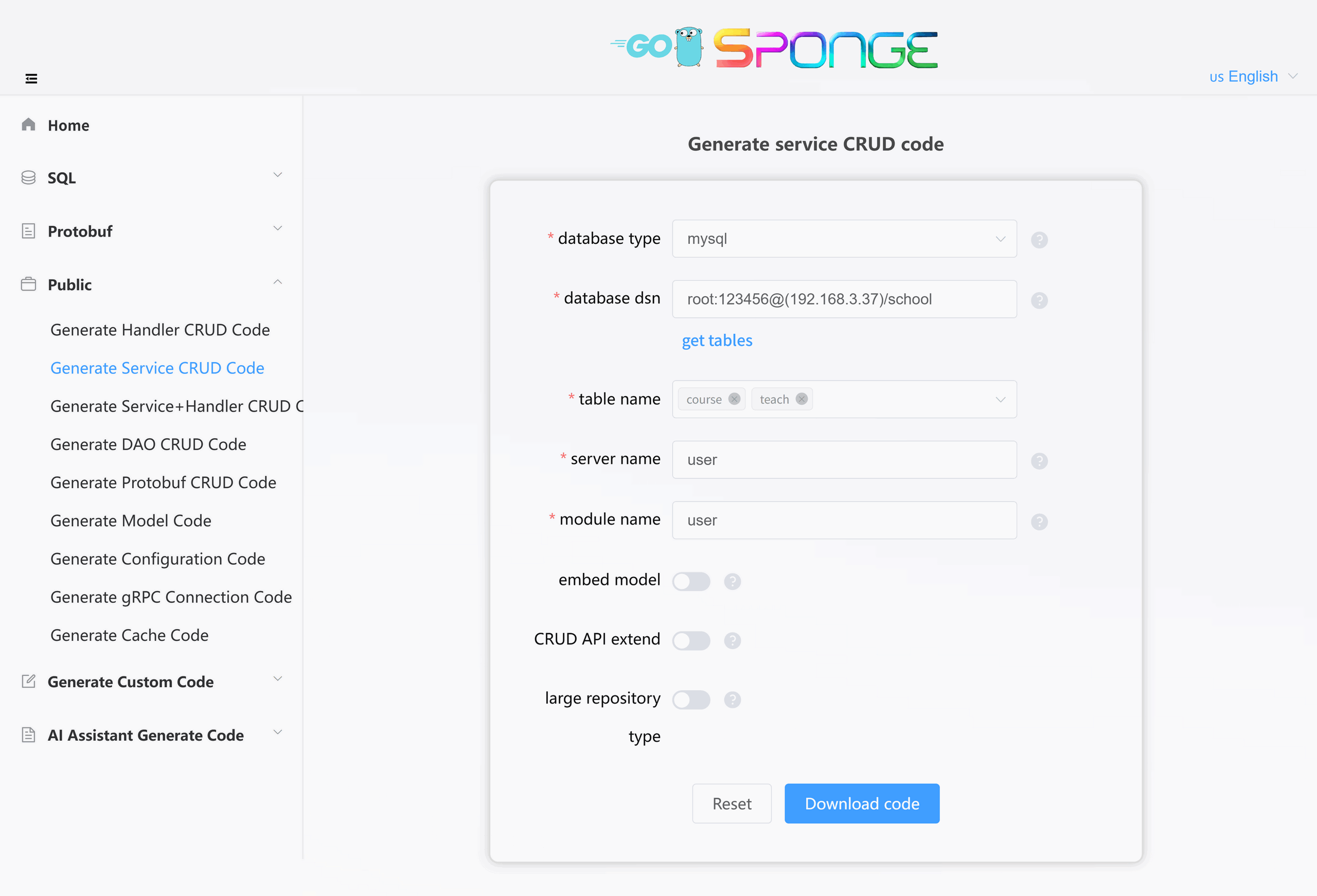

1. Click on the left menu bar [Public] → [Generate Service CRUD Code];
2. Select database mysql, fill in Database DSN, then click the button Get Table Names, and select mysql tables (multiple selections allowed);
3. Fill in other parameters.

After filling in the parameters, click the button Download Code to generate the service CRUD code, as shown in the figure below:

micro-rpc-service

Equivalent Command

# Full command
sponge micro service --module-name=user --db-driver=mysql --db-dsn="root:123456@(192.168.3.37:3306)/school" --db-table=course,teach

# Simplified command (use --out to specify the service code directory, generated code is automatically merged into the specified service directory)
sponge micro service --db-driver=mysql --db-dsn="root:123456@(192.168.3.37:3306)/school" --db-table=course,teach --out=user

Code Directory Structure

The directory structure for the generated service CRUD code is as follows:

.
├─ api
│   └─ user
│       └─ v1
└─ internal
     ├─ cache
     ├─ dao
     ├─ ecode
     ├─ model
     └─ service

Test CRUD API

Unzip the code, move the internal and api directories to the gRPC service code directory, and execute the following commands:

# Generate and merge api related code
make proto

# Compile and run the service
make run

To test the CRUD API, please refer to the section above: Test gRPC Service API.

Tips

The List interface in the CRUD API supports powerful custom conditional pagination query functionality. Click to view detailed usage rules: Custom Conditional Pagination Query.

Develop Custom API

Projects usually have custom APIs in addition to standardized CRUD APIs. sponge adopts a "definition generates code" development model, allowing rapid development of custom APIs, which mainly involves the following three steps:

1. Define API
   Declare the request/response structure of the API in the .proto file.

2. Write Business Logic

   • Fill in the core business logic code in the generated code template.
   • No need to manually write the complete gRPC server/client code.

3. Test Verification

   • Test code is automatically generated and can be run directly.
   • No need to rely on third-party gRPC client tools like Postman.

The following takes adding a "Login" API as an example to explain the development process in detail.

1. Define API

Go to the project directory api/user/v1, edit the teacher.proto file, and add the description information for the Login API:

service teacher {
  // ...

  // Login, describe the specific implementation logic here to tell sponge's built-in AI assistant how to generate the business logic code
  rpc Login(LoginRequest) returns (LoginReply) {}
}

message LoginRequest {
  string email = 1 [(validate.rules).string.email = true];
  string password = 2 [(validate.rules).string.min_len = 6];
}

message LoginReply {
  uint64 id = 1;
  string token = 2;
}

After adding the API description information, execute the command in the terminal:

# Generate and merge api related code
make proto

2. Implement Business Logic

There are two ways to implement business logic code:

• Manually write business logic code

  Open the code file internal/service/teacher.go and fill in the specific business logic code in the Login method function.

  Note

  In developing custom APIs, you might need to perform database CRUD operations or cache operations. You can reuse the following code:

  • Database CRUD Operations
  • Cache Operations

• Automatically generate business logic code

  Sponge provides a built-in AI assistant to generate business logic code. Click to view the section on AI Assistant generates code.

  The business logic code generated by the AI assistant may not fully meet the actual requirements and needs to be modified according to the specific situation.

3. Test Custom API

After implementing the business logic code, execute the command in the terminal:

# Compile and run the service
make run

To test the custom API, please refer to the section above: Test gRPC Service API.

Cross-Service gRPC API Call

In a microservice architecture, the current service may need to call APIs provided by other gRPC services. These target services may be implemented in different languages but must use the Protocol Buffers protocol. The following is a complete description of the calling process:

Generate gRPC Service Connection Code

Operation Steps:

1. Access the sponge UI interface.

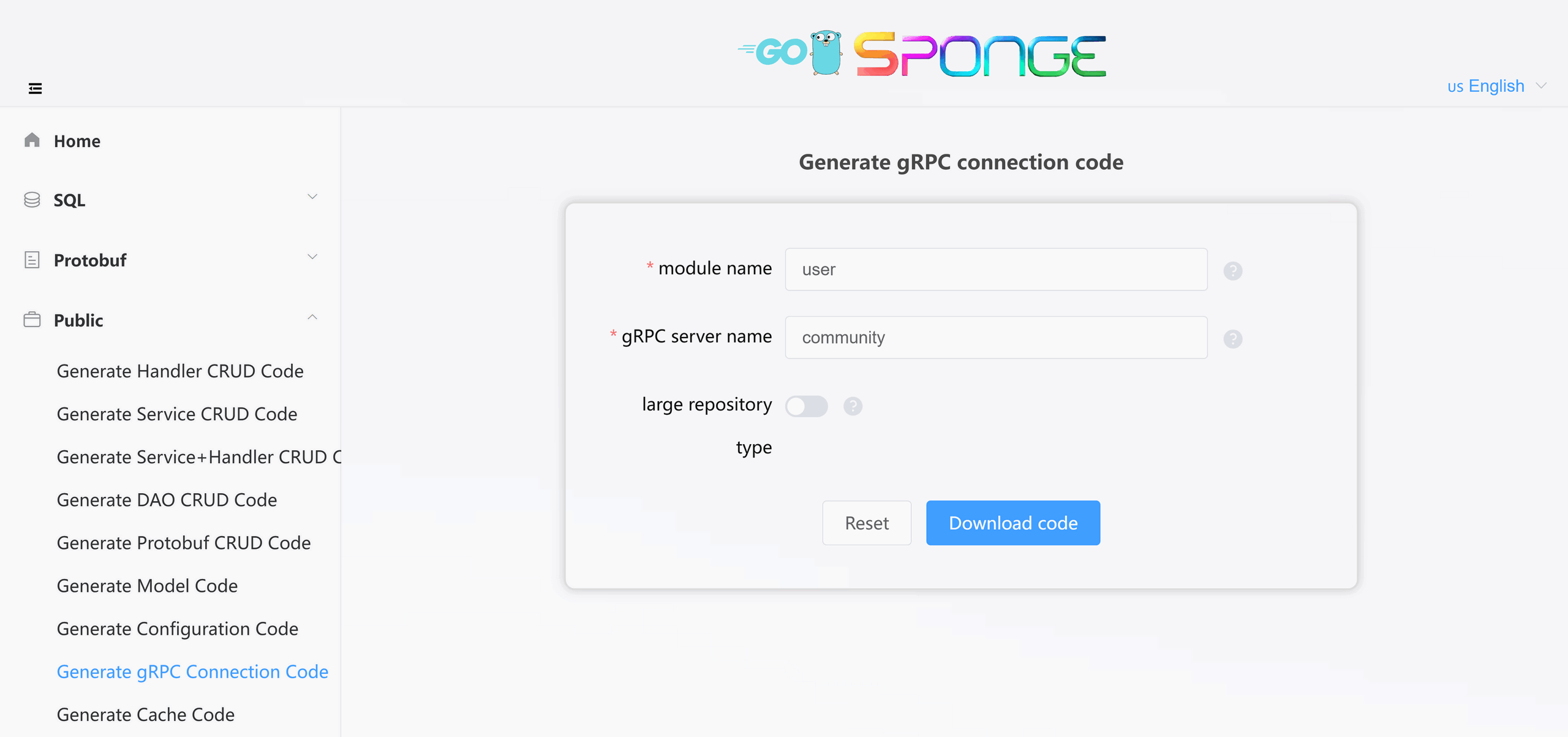

2. Navigate to [Public] → [Generate gRPC Service Connection Code].
3. Fill in parameters:
   • Module Name (Required)
   • gRPC Service Names (Supports multiple services, separated by commas)

Click the button [Download Code] to generate the gRPC service connection code, as shown in the figure below:

micro-rpc-conn

Equivalent Command

# Full command
sponge micro rpc-conn --module-name=user --rpc-server-name=community

# Simplified command (use --out to specify the service code directory, generated code is automatically merged into the specified service directory)
sponge micro rpc-conn --rpc-server-name=community --out=edusys

Generated Code Structure:

.
└─ internal
    └─ rpcclient  # Includes complete client configuration for service discovery, load balancing, etc.

Unzip the code, move the internal directory to the current service's code directory.

Example of using the generated gRPC connection code in your code:

In actual use, you might need to call APIs from multiple gRPC services to get data. The initialization example code is as follows:

package service

import (
    userV1 "edusys/api/user/v1"
    relationV1 "edusys/api/relation/v1"
    creationV1 "edusys/api/creation/v1"
    // ......
)

type user struct {
    userV1.UnimplementedTeacherServer

    relationCli relationV1.RelationClient
    creationCli creationV1.CreationClient
}

// NewUserClient create a client
func NewUserServer() edusysV1.UserLogicer {
    return &user{
        // Instantiate multiple gRPC service client interfaces
        relationCli: userV1.NewRelationClient(rpcclient.GetRelationRPCConn()),
        creationCli: userV1.NewCreationClient(rpcclient.GetCreationRPCConn()),
    }
}

// ......

Configure Target gRPC Service Connection Parameters

Add the following configuration to the configuration file configs/service-name.yml:

grpcClient:
  - name: "user"        # grpc service name
    host: "127.0.0.1"   # grpc service address, this field value is invalid if service discovery is enabled
    port: 8282          # grpc service port, this field value is invalid if service discovery is enabled
    registryDiscoveryType: ""  # service discovery, disabled by default, supports consul, etcd, nacos

Multiple Service Configuration Example:

grpcClient:
  - name: "user"
    host: "127.0.0.1"
    port: 18282
    registryDiscoveryType: ""
  - name: "relation"
    host: "127.0.0.1"
    port: 28282
    registryDiscoveryType: ""
  - name: "creation"
    host: "127.0.0.1"
    port: 38282
    registryDiscoveryType: ""

Tips

For complete configuration options, refer to the description of the grpcClient field in the configuration file configs/[service name].yml.

Call Target gRPC Service API

After successfully connecting to the target gRPC service, to clearly know which API interfaces can be called, you need to introduce the Go language stub code generated from the proto files. Depending on the service architecture, there are two main ways to call APIs:

• Mono-repo Architecture
  If the target gRPC service was created by sponge and belongs to the same microservice mono-repository as the current service (selected "Large Repository" type when creating the service), you can directly call its APIs without cross-service dependency issues.

• Multi-repo Architecture
  If the target gRPC service is located in an independent code repository, you need to solve the problem of cross-service referencing proto files and Go stub code. The following are two common solutions:

  Solution One: Use a Public Protobuf Repository

  For a multi-repo microservice system, it is recommended to create a dedicated public Git repository (e.g., public_protobuf) to centrally manage proto files and their generated Go stub code. A typical directory structure is as follows:

  ·
  ├── api
  │    ├── serverName1
  │    │   └── v1
  │    │       ├── serverName1.pb.go
  │    │       └── serverName1_grpc.pb.go
  │    └── serverName2
  │        └── v1
  │            ├── serverName2.pb.go
  │            └── serverName2_grpc.pb.go
  ├── protobuf
  │    ├── serverName1
  │    │   └── serverName1.proto
  │    └── serverName2
  │        └── serverName2.proto
  ├── go.mod
  └── go.sum

  Calling Steps:

  1. Copy the protobuf directory from the public repository to the third_party directory of your local service.

     .
     ├── third_party
     │    └── protobuf
     │        ├── serviceA
     │        │   └── serviceA.proto
     │        └── serviceB
     │            └── serviceB.proto

  2. Import the target proto in your local proto file using import (e.g., import "protobuf/serviceA/serviceA.proto";).

  3. Call the target gRPC service's API in your local service code.

  Note

  Ensure that the proto files under third_party/protobuf are synchronized with the public repository.




  Solution Two: Copy the target service's proto file into this service and generate Go language stub code

  Different processing flows are used depending on how the target service was created:

  1. Service not created by sponge

     • Manually copy the target service's proto file to the api/target-service-name/v1 directory.
     • Manually modify the go_package path definition in the proto file.

  2. Service created by sponge

     Integration is completed via automated commands:

     # Copy the target service's proto files (supports multiple service directories, separated by commas)
     make copy-proto SERVER=../target_service_dir

     # Generate Go stub code
     make proto

     Advanced Options:

     • Specify proto files: PROTO_FILE=file1,file2
     • Automatic backup: Overwritten files can be found at /tmp/sponge_copy_backup_proto_files

Test Cross-Service gRPC API Call

1. Start dependent services:

   • gRPC service created by sponge: Execute make run
   • Other gRPC services: Run according to their actual startup commands

2. Start the current service by executing the commands:

   # Generate and merge api related code
   make proto

   # Compile and run the service
   make run

To test the cross-service gRPC API call, please refer to the section above: Test gRPC Service API.

Service Configuration Explanation

The gRPC service created by sponge provides a rich set of configurable components. You can flexibly manage these components by modifying the configs/service-name.yml configuration file.

Component Management Explanation

You can add or replace custom gRPC interceptors in internal/server/grpc.go.

Default Enabled Components

Component	Function Description	Configuration Documentation
logger	Logging component • Default terminal output • Supports console/json format • Supports log file splitting and retention	Logger Configuration
enableMetrics	Prometheus metrics collection • Default route /metrics	Monitoring Configuration
enableStat	Resource monitoring • Records CPU/memory usage per minute • Automatically saves profile if threshold is exceeded	Resource Statistics
database	Database support • MySQL/MongoDB/PostgreSQL/SQLite	gorm Configuration mongodb Configuration

Default Disabled Components

Component	Function Description	Configuration Documentation
cacheType	Cache support (Redis/In-memory)	redis Configuration
enableHTTPProfile	Performance analysis (pprof) • Default route /debug/pprof/	-
enableLimit	Adaptive request limiting	Rate Limiting Configuration
enableCircuitBreaker	Circuit breaker protection	Circuit Breaker Configuration
enableTrace	Distributed tracing	Tracing Configuration
registryDiscoveryType	Service registration and discovery • Consul/Etcd/Nacos	Service Registration and Discovery Configuration

Configuration Update Process

If you add or change field names in the configuration file configs/service-name.yml, you need to update the corresponding Go code by executing the following command in the terminal:

# Regenerate configuration code
make config

Note

If you only modify the field values in the configuration file, you do not need to execute the make config command; you only need to recompile and run.

Tips

To learn more about components and configuration details, click to view the Components and Configuration section.
