Redis Cache

Generate Cache Code

Generate Code

In the sponge UI interface:

1. Click the left menu bar [Public] → [Generate Cache Code];
2. Fill in the parameters according to the interface prompts. You can view the parameter descriptions by hovering over the ? icon.

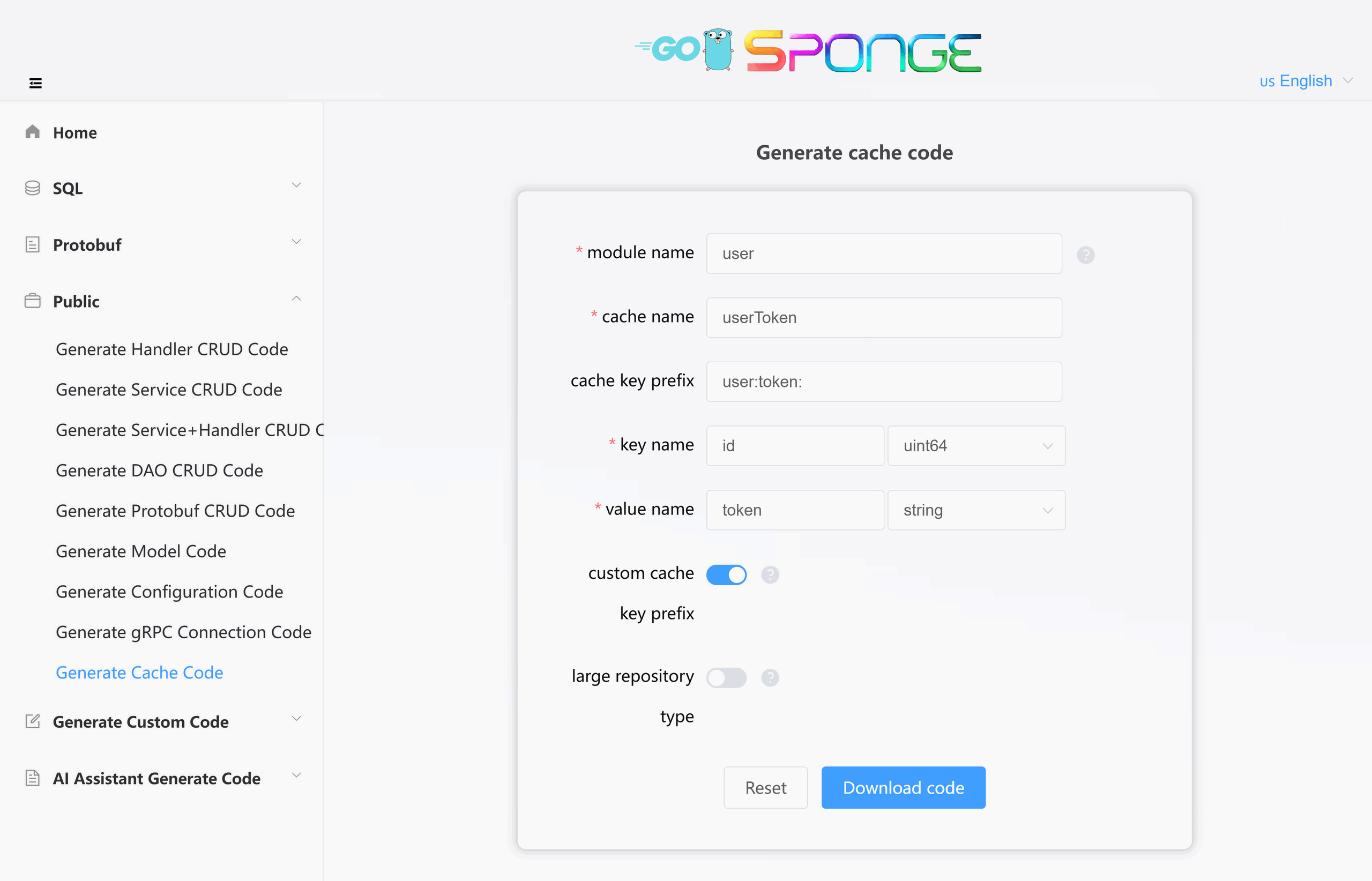

After filling in the parameters, click the Download Code button to generate the cache code, as shown in the figure below:

public-cache

Equivalent Command

# Full command
sponge web cache --module-name=user --cache-name=userToken --prefix-key=user:token: --key-name=id --key-type=uint64 --value-name=token --value-type=string

# Simplified command (use --out to specify the service code directory, the generated code will be automatically merged into the specified service directory)
sponge web cache --cache-name=userToken --prefix-key=user:token: --key-name=id --key-type=uint64 --value-name=token --value-type=string --out=user

Code Directory Structure

The generated cache code directory structure is as follows:

.
└─ internal
     └─ cache    # Contains the generated cache interface implementation and test files

Code Integration Instructions

1. Integration Steps

   • Unzip the generated code package
   • Move the entire internal directory to the root directory of the target service (web or gRPC) code

2. Notes

   • If a conflict prompt appears, it means that the same cache configuration already exists and can be safely overwritten.

Cache Code Usage

Web Service Invocation Method

Locate File: internal/handler/

• Services created based on SQL: table_name.go
• Services created based on Protobuf: proto_file_name.go

Reference Example:

type userHandler struct {
    userTokenCache cache.UserTokenCache  // Inject cache interface
}

func NewUserHandler() UserHandler {
    return &userHandler{
        userTokenCache: cache.NewUserTokenCache(database.GetCacheType()) // Initalize cache
    }
}

// All cache operations (Get/Set/Delete, etc.) can be used directly.

gRPC Service Invocation Method

Locate File: internal/service/

• Services created based on SQL: table_name.go
• Services created based on Protobuf: proto_file_name.go

Reference Example:

type userService struct {
    userV1.UnimplementedUserServer

    userTokenCache cache.UserTokenCache  // Inject cache interface
}

func NewUserServer() userV1.UserServer {
    return &user{
        userTokenCache: cache.NewUserTokenCache(database.GetCacheType()) // Initalize cache
    }
}

// All cache operations (Get/Set/Delete, etc.) can be used directly.
