K8S CI/CD Automated Deployment

Services created by sponge support automated building and deployment to a Kubernetes cluster via Jenkins. Below is a detailed guide on using Jenkins for the complete CI/CD process.

Alternative

If you prefer to use GitLab CI/CD, you can write your own .gitlab-ci.yml file. All build and deployment scripts are provided in the project's scripts directory.

Setting up the Jenkins-Go Build Platform

Preparing the Base Image

We provide a pre-built Docker image jenkins-go, which integrates the Go language compilation environment. If you need a custom image, you can refer to the Dockerfile for building.

Environment Requirements

• An available Kubernetes cluster
• kubectl command-line tool installed
• Ensure the container has permissions to operate on k8s (needs to copy authentication files from the .kube directory)

Starting the Jenkins Service

Use the following docker-compose.yml configuration:

version: "3.7"
services:
  jenkins-go:
    image: zhufuyi/jenkins-go:2.37
    restart: always
    container_name: "jenkins-go"
    ports:
      - 38080:8080
    #- 50000:50000
    volumes:
      - $PWD/jenkins-volume:/var/jenkins_home
      # docker configuration
      - /var/run/docker.sock:/var/run/docker.sock
      - /usr/bin/docker:/usr/bin/docker
      - /root/.docker/:/root/.docker/
      # k8s api configuration directory, including config file
      - /usr/local/bin/kubectl:/usr/local/bin/kubectl
      - /root/.kube/:/root/.kube/
      # go related tools
      - /opt/go/bin/golangci-lint:/usr/local/bin/golangci-lint

Start command:

docker-compose up -d

Access address: http://localhost:38080
Getting the initial password:

docker exec jenkins-go cat /var/jenkins_home/secrets/initialAdminPassword

Initial Configuration

1. Install necessary plugins:

   • Locale (for Chinese support)
   • Extended Choice Parameter (for parameterized builds)
   • Git Parameter (for Git parameter support)
   • Role-based Authorization Strategy (for permission management)

2. Set Chinese interface:
   [Manage Jenkins] → [Configure System] → Set Locale to zh_CN

3. Configure Image Repository:

   # Development environment
   DEV_REGISTRY_HOST http://localhost:27070

   # Test environment
   TEST_REGISTRY_HOST http://localhost:28080

   # Production environment
   PROD_REGISTRY_HOST http://localhost:29090

Creating a Jenkins Job Template

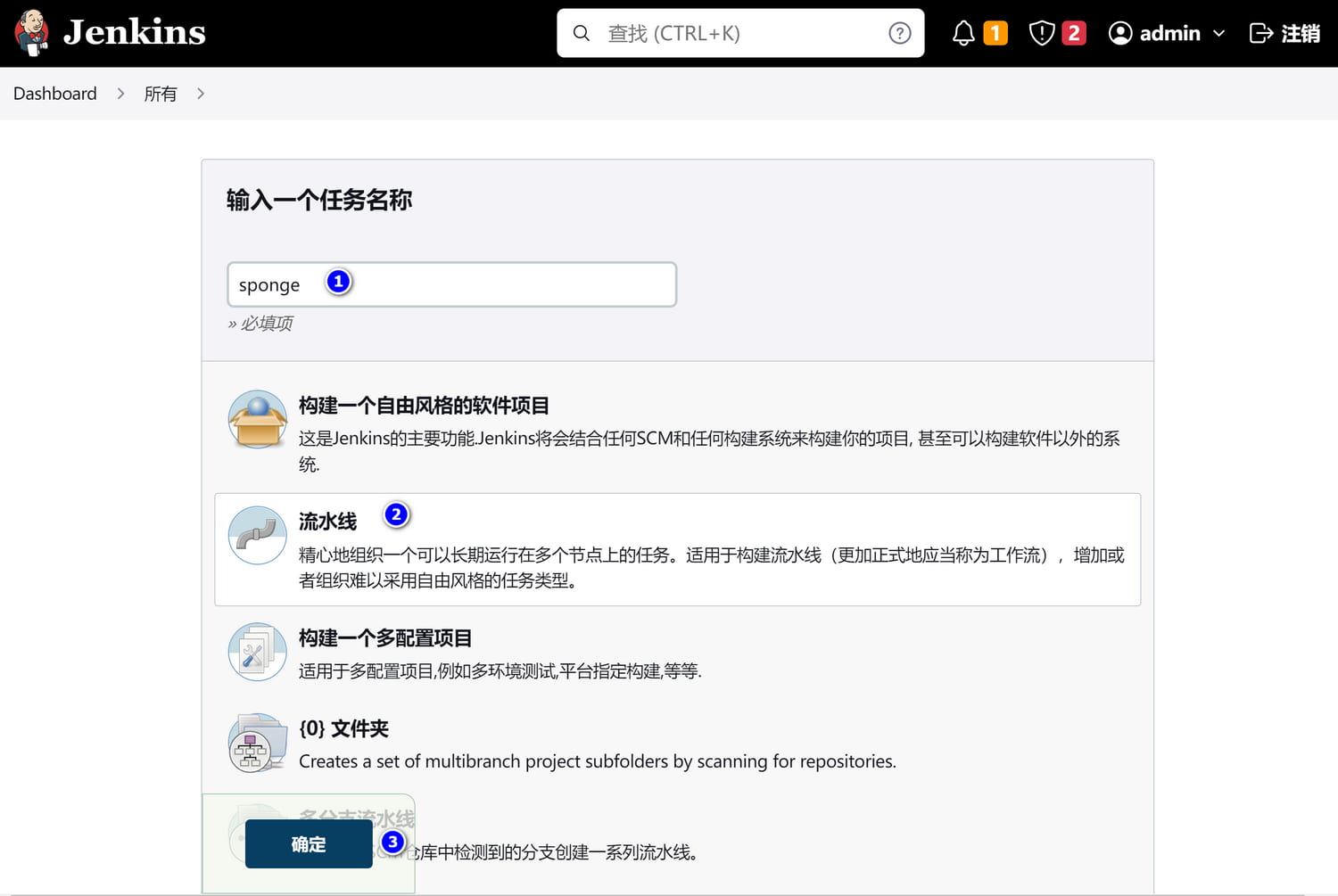

1. Create a New Job

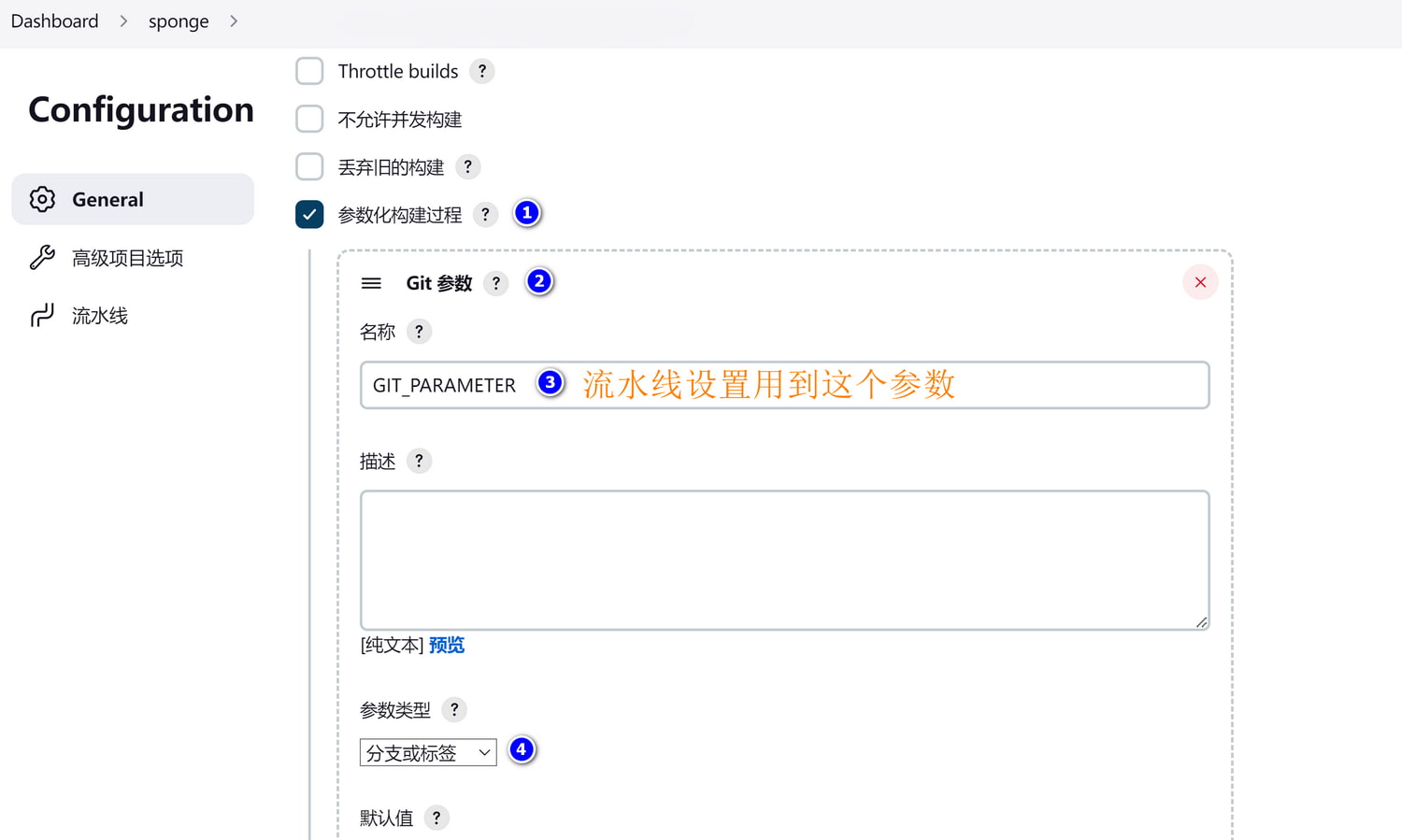

2. Parameterized Configuration
   Use GIT_parameter as the parameter name

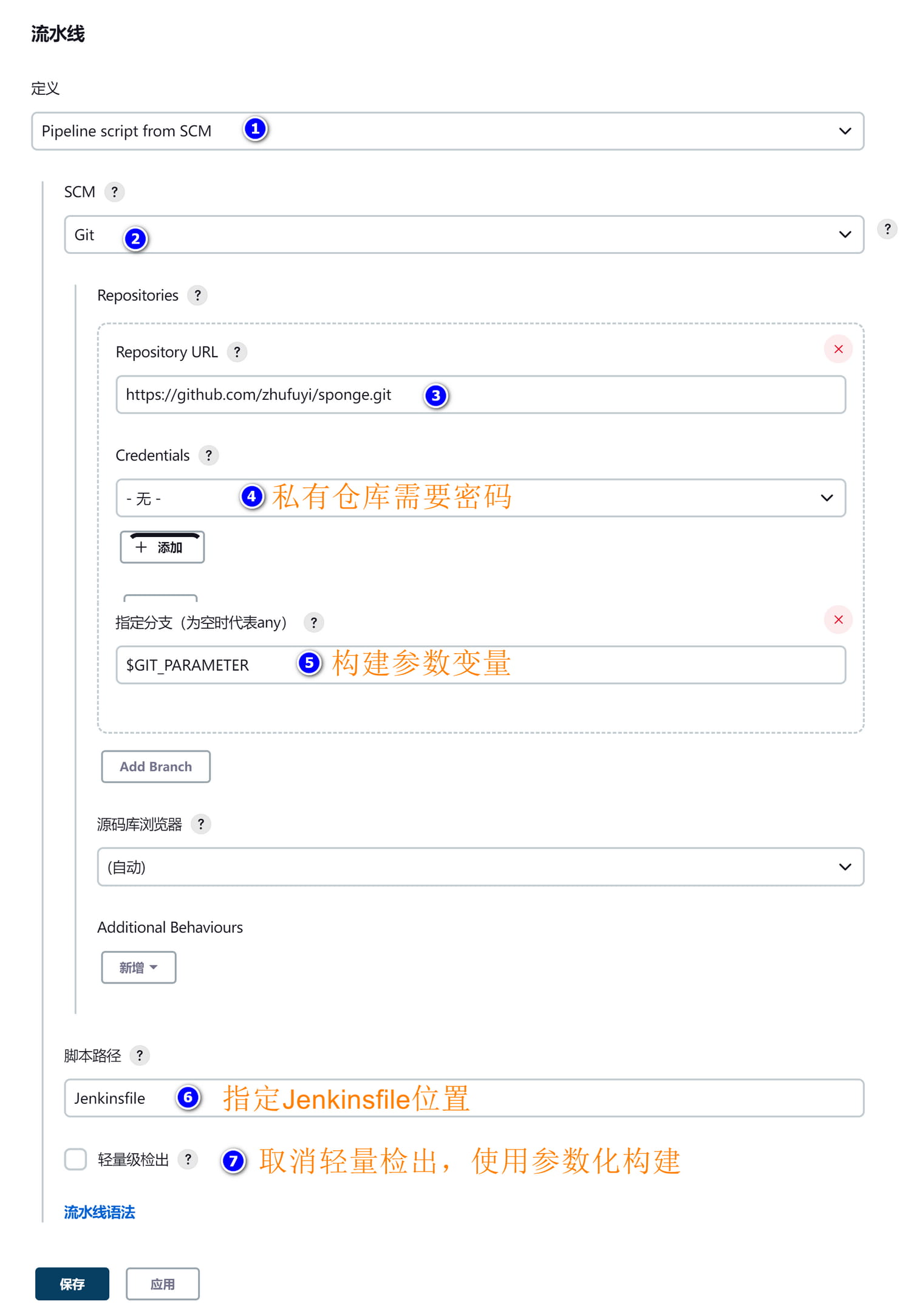

3. Pipeline Configuration

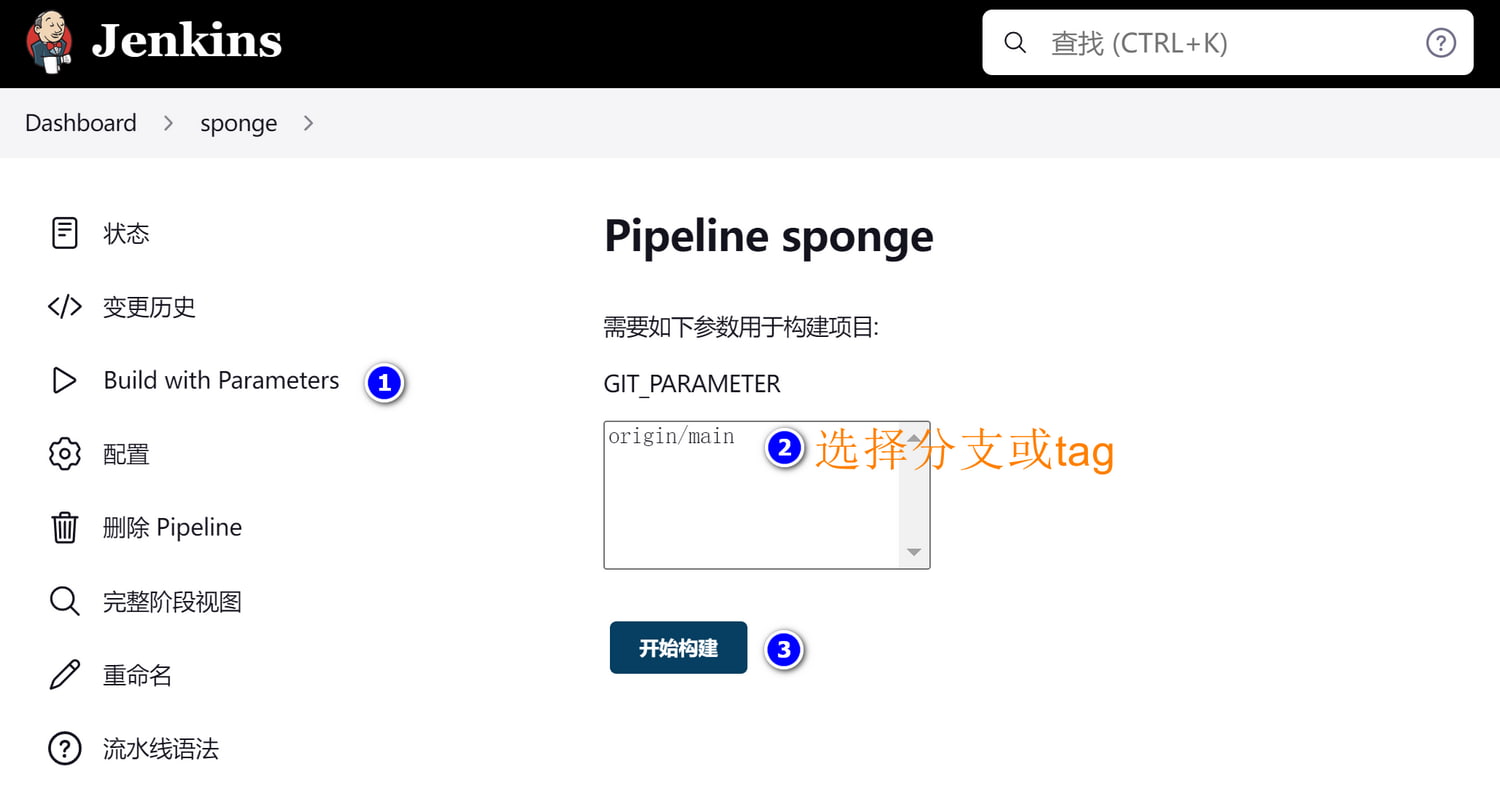

4. Build Execution
   Select Branch/Tag via [Build with Parameters]


Service Deployment Practice

Taking the "user" web service as an example, the steps are as follows:

Prerequisites

1. Upload the code to a Git repository

2. Configure Docker image repository access permissions and create a Kubernetes access secret:

   kubectl create secret generic docker-auth-secret \
       --from-file=.dockerconfigjson=/root/.docker/config.json \
       --type=kubernetes.io/dockerconfigjson

3. Create Kubernetes resources:

   cd deployments/kubernetes
   kubectl apply -f ./*namespace.yml
   kubectl apply -f ./*configmap.yml
   kubectl apply -f ./*svc.yml

4. (Optional) Configure DingTalk notifications:
   Modify the tel_num and access_token fields in Jenkinsfile

Deployment Verification

1. Check Pod status:

   kubectl get all -n user

   Expected output:

   NAME                             READY   STATUS    RESTARTS   AGE
   pod/user-dm-77b4bcccc5-8xt8v     1/1     Running   0          21m

   NAME                 TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
   service/user-svc     ClusterIP   10.108.31.220   <none>        8080/TCP   27m

   NAME                        READY   UP-TO-DATE   AVAILABLE   AGE
   deployment.apps/user-dm     1/1     1            1           21m

   NAME                                   DESIRED   CURRENT   READY   AGE
   replicaset.apps/user-dm-77b4bcccc5     1         1         1       21m

2. Local Testing:

   # Port forwarding
   kubectl port-forward --address=0.0.0.0 service/user-svc 8080:8080 -n user
   # API test
   curl http://localhost:8080/api/v1/teacher/1

Service Template Description

Web/gRPC services created by sponge already include:

• Jenkinsfile pipeline configuration
• Image build scripts
• Kubernetes deployment manifests
  Users can use them directly or modify them according to actual needs.

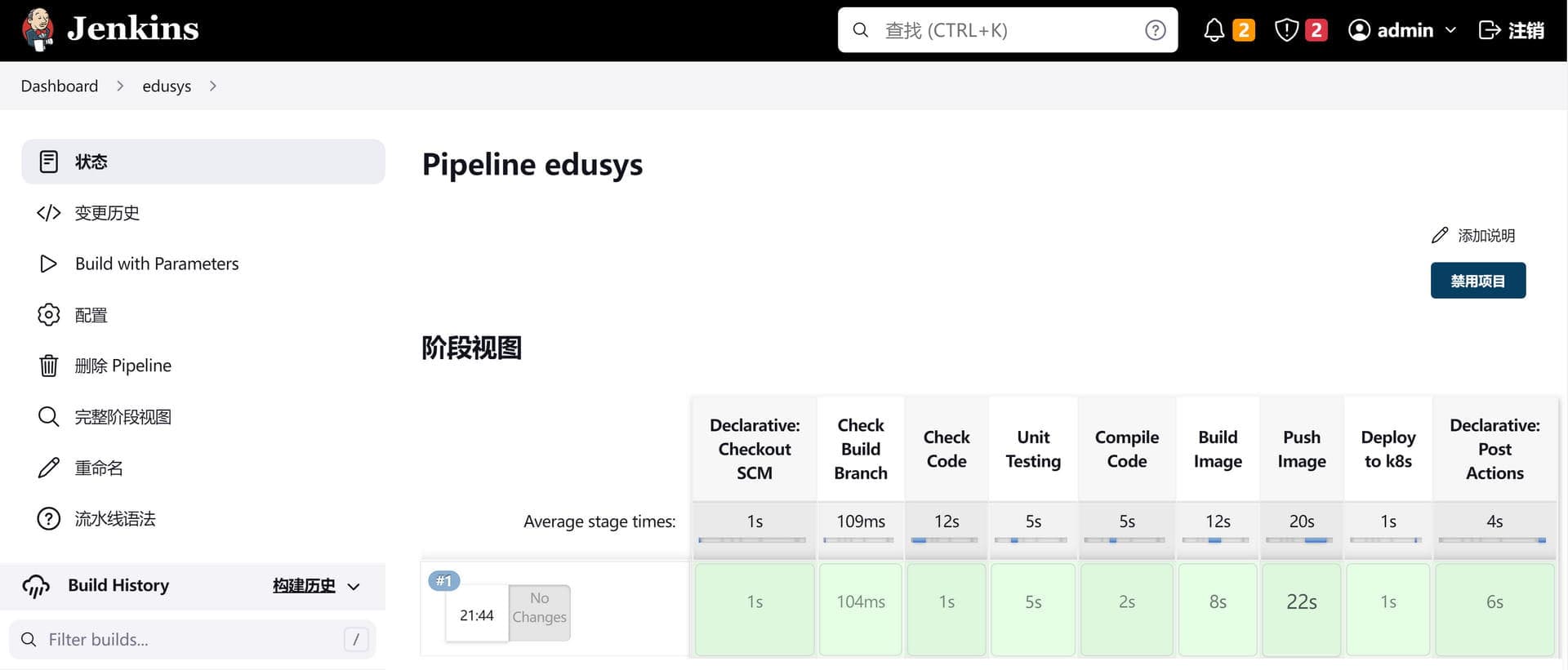

Deployment Result Example
